Vertical Bench Vise

Part # 158.073 9 In Stock Weight <0.1 lb / <5 g
Limited time deal-10%
Current price $135.00
List Price: $150.00

Description

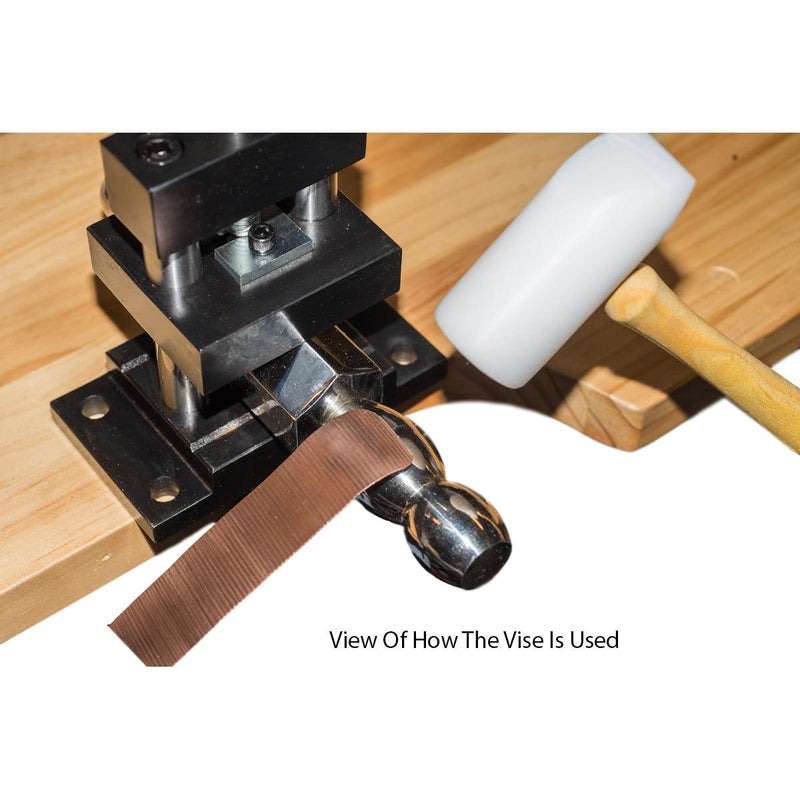

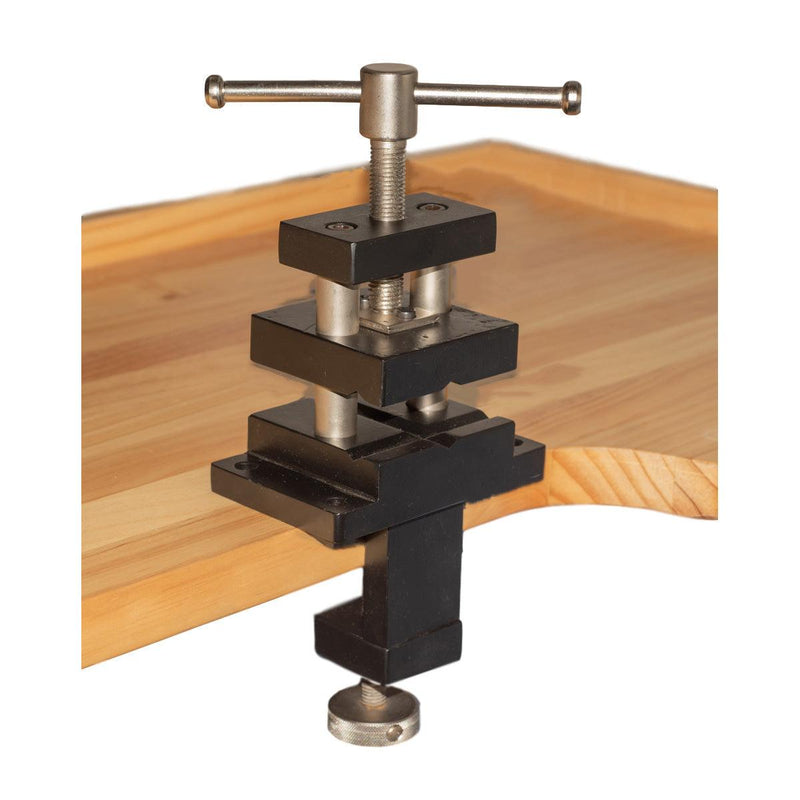

A vertical bench vise holds mandrels, stakes, and forming tools upright so you can hammer against a solid base. The Value Line Vertical Bench Vise is a heavy-duty steel vise designed to give jewelers, metalsmiths, and bench workers a secure vertical grip on mandrels, stakes, and forming tools. Mount bracelet mandrels, ring mandrels, or dapping tools vertically and hammer with confidence: this vise delivers near-anvil stability from a surprisingly compact footprint, and it is made in India.

The 3-1/2" × 3-1/2" jaws feature two intersecting grooves, one running front to back and the other side to side, so stakes and mandrels can be locked in either direction for maximum versatility. The T-bar handle slides out of the way during hammering to keep your workspace clear and your work safe.

Two mounting options are built in: attach quickly to your benchtop with the integrated C-clamp, or remove the C-clamp and bolt the vise directly through the four corner holes for permanent installation. No bolts are included for direct mounting.

Features

  • Heavy-duty solid steel construction
  • 3-1/2" × 3-1/2" jaws with two intersecting locking grooves for front-to-back and side-to-side mandrel orientation
  • Maximum jaw opening of 1-3/4"
  • Integrated C-clamp accommodates benchtops up to 2-1/4" thick
  • C-clamp is removable for direct bench mounting via four corner holes
  • T-bar slides clear for safe, unobstructed hammering
  • Holds bracelet mandrels, ring mandrels, dapping tools, and stakes vertically

Notes

  • Bolts for direct bench mounting are not included.

Specifications

Brand
Value Line
Part #
158.073
Type
Vises
Dimensions
11.75 in x 8.75 in x 2.75 in
Jaw Size
3-1/2" × 3-1/2"
Maximum Jaw Opening
1-3/4"
C-Clamp Capacity
Up to 2-1/4" benchtop thickness
Material
Solid steel
Mounting Options
Integrated C-clamp or direct bolt-down through four corner holes
California Prop 65 Warning California Prop 65 Warning:
Cancer and Reproductive Harm. www.P65warnings.ca.gov.

Reviews · 1

This product has 1 review.

Read & write reviews ↓
  • 5 stars: 0 (0%)
  • 4 stars: 1 (100%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Tom V
Very useful

The basic idea is great - a regular vise isn't the tool of choice for holding a mandrel horizontally. Also, being able to clamp it to the bench top means I'm not committing surface area when not in use. Don't worry about sturdiness - that clamp holds it to the benchtop very firmly, if you tighten it hard enough. Still, I can't give it the highest marks. The clamp that holds it to a benchtop comes off easily, if permanent mounting suits you. But, when I got this vise, the bolts that hold the clamp to the vise base didn't hold. The ends of the bolts had been chamfered to mate with threaded holes, but the chamfer cut back so much of the thread that one bolt didn't engage at all. The second bolt was chamfered the same way, sout I doubt that much was holding things together. The supplier (not Frei) replaced the bolts and got me working. After two other small snags, it does the job. A very helpful tool - but setup took a lot more fussing than I expected.
