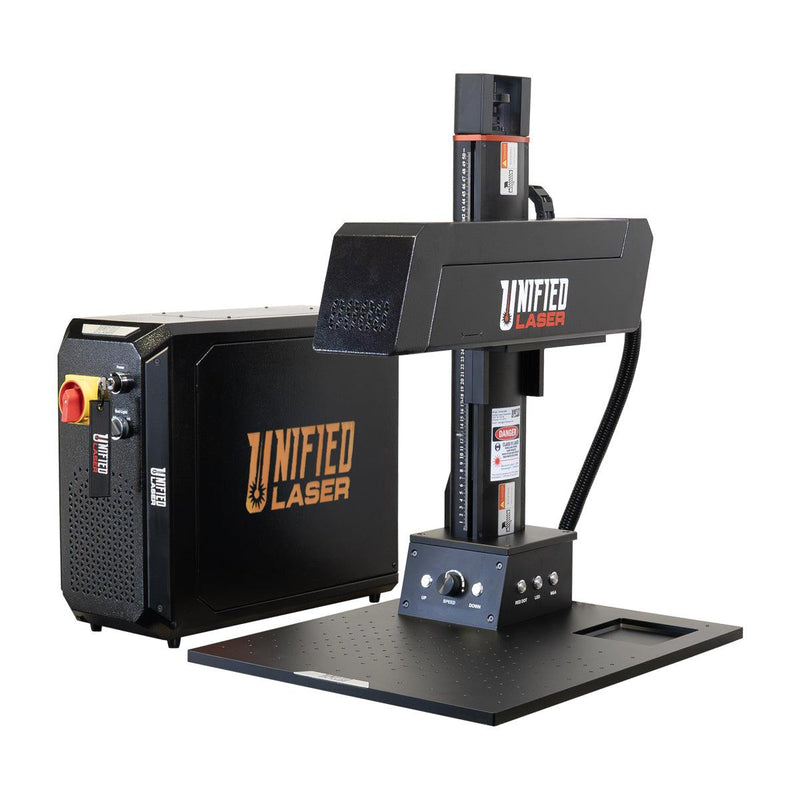

Unified Hotshot M60 Fiber Laser Engraving System 60W

Part # 126.086

Single unit weight: -- lbs / -- kg

$20,495.00 - $20,495.00
$20,495.00
$20,495.00 - $20,495.00
$20,495.00
by Otto Frei

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

Product Details

The Unified HotShot M60 Enclosed features a straightforward modular design for maximum versality in a space-saving package. Precision tuned to delicately mark or deep engrave any metal as well as certain polymers, plastics, ceramics and several other materials. Two F-Theta lenses are included with our proprietary Lens Swapper software to give you ability to always select the correct lens for the correct application.

Every system completes a full power calibration and field size correction. This ensures accurate and consistent results every time.


Aspect Specification
Laser Type Pulse Fiber Laser
Platform Class 4/Open
Wave Length 1064nm +/- 5nm
Pulse Energy (Maximum) 1.5 mJ
Average Power (Maximum) 60W
Rep. Rate Range (Frequency Range) 1 - 4000 kHz
Beam Quality (M²) <1.8
Pulse Width 10-350 nns
Scanhead Speed (Maximum) 10,000 mm/sec - 394 in/sec
Engraving Area (Maximum) F-Theta lens dependent
Optical Positioning Laser Visible red-beam laser for easy alignment
F-Theta Lens (mm) 100, 163, 254
Power Requirements 120V (± 10%) 16amp, 50/60Hz
Operating Temperature 32°F - 104°F (0°C - 40°C)
Dimensions 24"L x 24"W x 29"H
Weight 135 lbs. / 62Kg
Z Axis Adjustment Motorized With Potentiometer
Rotary Orientation Capabilities Inside and Outside
Spot Size Range 15um - 80um / 0.0006" - 0.003"
Cooling Type Air Cooled (Internal)
