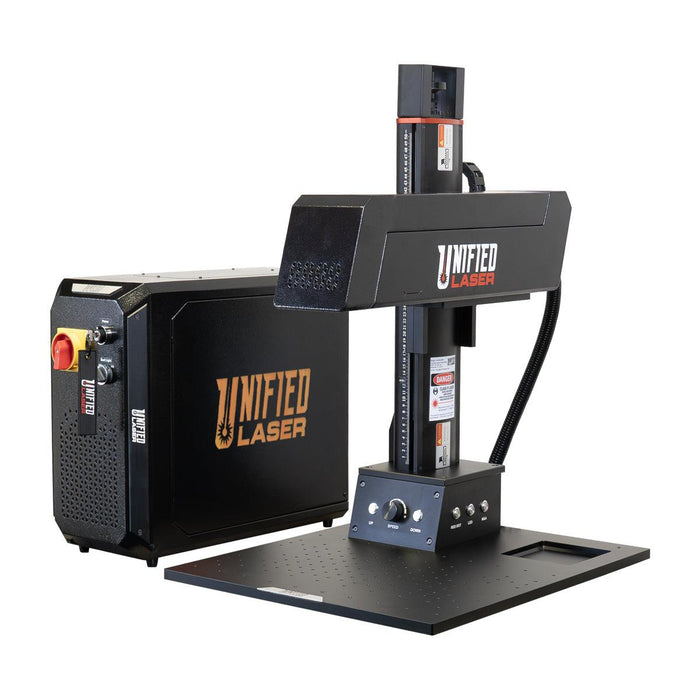

Unified Hotshot M60 Fiber Laser Engraving System 60W

The Unified HotShot M60 Enclosed features a straightforward modular design for maximum versality in a space-saving package. Precision tuned to delicately mark or deep engrave any metal as well as certain polymers, plastics, ceramics and several other materials. Two F-Theta lenses are included with our proprietary Lens Swapper software to give you ability to always select the correct lens for the correct application.

Every system completes a full power calibration and field size correction. This ensures accurate and consistent results every time.


Aspect	Specification
Laser Type	Pulse Fiber Laser
Platform	Class 4/Open
Wave Length	1064nm +/- 5mm
Pulse Energy (Maximum)	1.5 mJ
Average Power (Maximum)	60W
Rep. Rate Range (Frequency Range)	1 - 4000 kHz
Beam Quality (M²)	<1.8
Pulse Width	10-350 nns
Scanhead Speed (Maximum)	10,000 mm/sec - 394 in/sec
Engraving Area (Maximum)	F-Theta lens dependent
Optical Positioning Laser	Visible red-beam laser for easy alignment
F-Theta Lens (mm)	100, 163, 254
Power Requirements	120V (± 10%) 16amp, 50/60Hz
Operating Temperature	32°F - 104°F (0°C - 40°C)
Dimensions	24"L x 24"W x 29"H
Weight	135 lbs. / 62Kg
Z Axis Adjustment	Motorized With Potentiometer
Rotary Orientation Capabilities	Inside and Outside
Spot Size Range	15um - 80um / 0.0006" - 0.003"
Cooling Type	Air Cooled (Internal)
