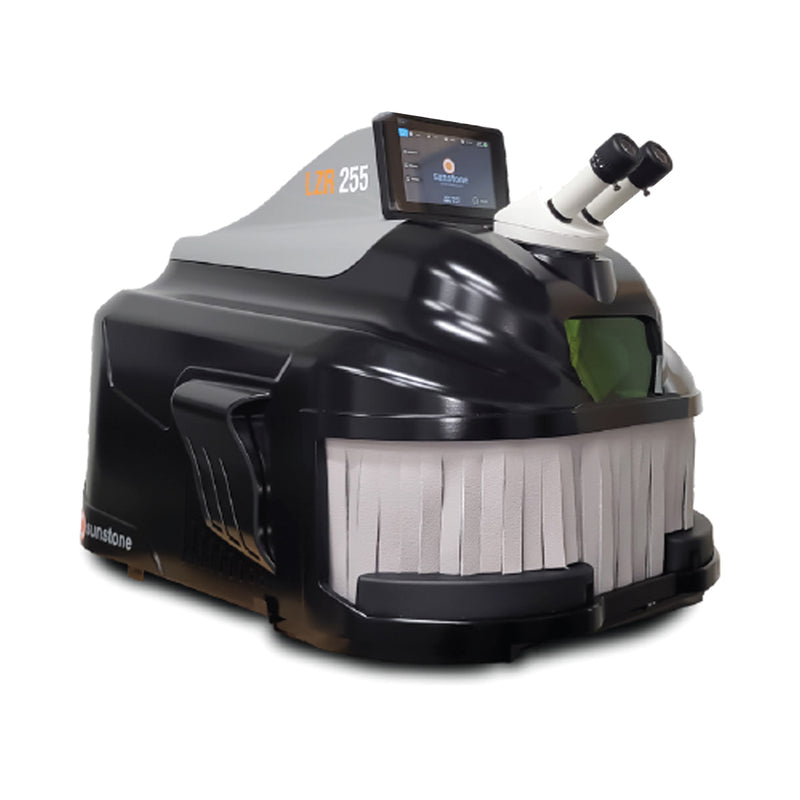

Orion LZR PRO 255 Benchtop Laser Welder - 255 Joules

Orion LZR PRO 255 Benchtop Laser Welder - 255 Joules

Part # 114.876

Single unit weight: -- lbs / -- kg

$21,900.00 - $21,900.00
$21,900.00
$21,900.00 - $21,900.00
$21,900.00
Availability:
In stock
by Orion

Login to add this product to your wish list. Items on your wish list get price drop and back in stock notifications.

The Orion LZR PRO 255 is Sunstone’s flagship benchtop laser welder for demanding jewelry work. It combines 255 J maximum energy, Leica 10× optics, an in-chamber joystick, built-in HD camera (with HDMI out), and motorized spot-size control for fast, repeatable results. With a wide, open-bottom chamber (180° access), argon shielding, and a compressed-air nozzle for part cooling, the PRO is built for speed, precision, and throughput.

Key Features

  • High output: 255 J energy, 100 W average / 11 kW peak power; up to 40 welds per second for production pace.
  • Smooth, precise welds: Gaussian Smooth Spot and SMSP waveform deliver cleaner, more consistent seams across metals.
  • Exact spot sizing: Motorized 0.3–2.0 mm “Smooth Spot” diameter set digitally; optional 0.1 mm micro-spot.
  • See more, work faster: Leica 10× optics with Heads-Up viewing of power settings, 3 chamber LEDs, and integrated HD camera + HDMI out.
  • Operator-friendly chamber: 180° open weld chamber with drop-out bottom for oversized or heavy pieces; external arm rests.
  • Clean weld pool: Argon shielding nozzle; compressed-air nozzle speeds part cooling between pulses.
  • Low-maintenance cooling: Deionized-water double cooling system with long-life resin sack; dual fans and radiators.
  • 3-year warranty and high-efficiency components for long service life.

Specifications

Energy 255 J
Average / Peak Power 100 W / 11 kW
Pulse Frequency 0.5–40 Hz
Impulse Time 0.1–25 ms
Spot Diameter 0.3–2.0 mm Smooth Spot (optional 0.1 mm)
Spot Setting Motorized (digital display)
Wave Programs 6 wave-shaping presets; Gaussian Smooth Spot; SMSP waveform
Optics Leica 10× stereo microscope; Heads-Up display of power settings
Camera / I/O Built-in HD camera; HDMI output; USB port
Controls 7″ touchscreen interface; in-chamber joystick
Shielding / Air Argon nozzle (shielding gas); compressed-air nozzle for cooling
Cooling Deionized water, double system; resin sack (low maintenance)
Power Supply 100–230 VAC, auto-detect
Chamber Lighting 3 LEDs
Footprint (L × W × H) 33.5″ × 22.8″ × 23.6″
Crystal 7 mm

Technical specifications per manufacturer brochure. :contentReference[oaicite:0]{index=0}

Applications

  • Porosity fill, prong and bezel repair, micro-tacks prior to soldering
  • Seams and fine fabrication on gold, platinum, silver, stainless, and more
  • Work near heat-sensitive stones and finishes

What’s Included

  • Orion LZR PRO 255 benchtop laser welder
  • Leica 10× microscope with in-chamber joystick
  • Integrated HD camera (HDMI out), chamber LED lighting, external arm rests
  • Argon and compressed-air nozzles (supplies not included)
  • Power cable and documentation

Buying & Support

Questions or financing? Contact Wyatt Frei at 1-800-772-3456 x107 or wyatt@ottofrei.com.
