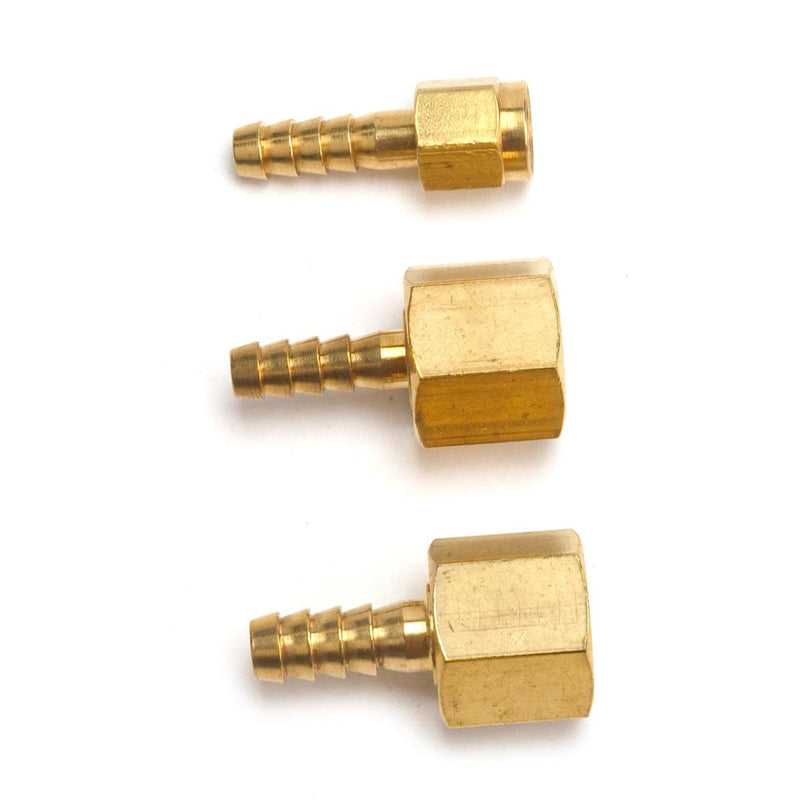

Hose Connector Oxygen

Choose from 3 sizes:

• 114.198 3/8" Nut (USA Standard A Fitting) 3/16" Hose ID Nipple For Meco Midget Torch
• 114.195 9/16" Nut (USA Standard B Fitting)  3/16" Hose ID Nipple
• 114.178 9/16" Nut (USA Standard B Fitting) 1/4" Hose ID Nipple

These oxygen hose connectors have either A fittings (3/8") or B fittings (9/16") nuts for connecting torches to cut hoses which are then secured with hose clamps to the nipples. If you have a Meco Midget, use oxygen fitting 114.198 with the 3/8" USA standard A fitting. The 3/8" 114.198 A connector is only available with a 3/16"ID Hose nipple. The 9/16" B connectors are available with either a 3/16" ID Hose nipple or the larger 1/4" ID Hose nipple.

Dimensions for the nipples refer to the inside diameter of the hose they are recommended for and not to the diameter of the nipple itself.  Nipple diameter is larger than the ID of the hose it is recommended for.

Here is a list of torches we sell and the recommend hose connectors:

Torches that have USA standard B fittings (9/16"):

• 114.401 Smith Silversmith Kit no Tank
• 114.400 Smith Silversmith Kit with Tank
• 114.405 Smith Silversmith Body Only
• 114.395 Smith WH-100 Body Only
• 114.392 Smith WH-100 with MW-411 Tip
• 114.393-10 Smith WH-100 with MT-603 Tip
• 114.393-16 Smith WH-100 with MT-605 Tip
• 114.375A Uniweld WH-250 Body Only
• 114.375 Uniweld WH-250 with T28-6 Tip

Torches that have USA Standard A fittings (3/8"):

• 114.160-T Meco Midget Torch No Tips
• 114.160-T-1 Meco Midget Torch with 1 Tip
• 114.160 Meco Midget Torch with 3 Tips
• 114.390A Uniweld 71 Body Only
• 114.390 Uniweld 71 with T28-6 Tip
