Description

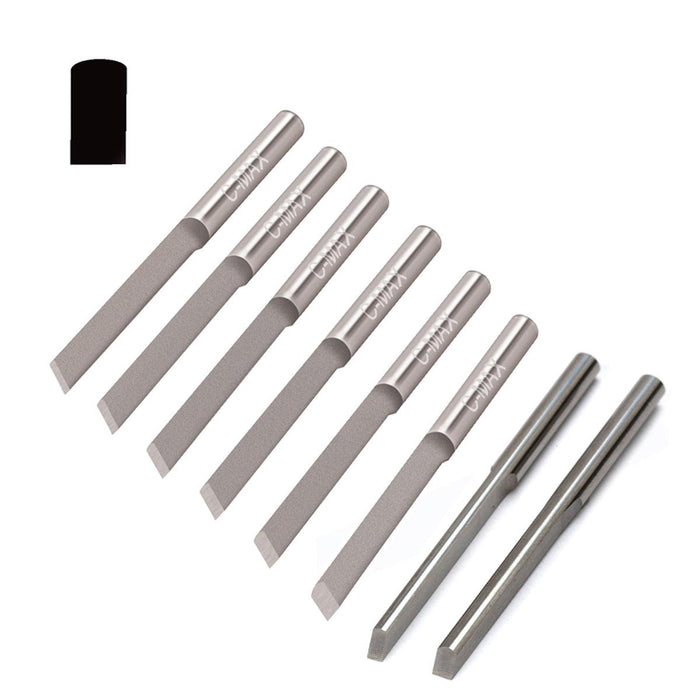

A parallel flat graver cuts flat-bottomed lines for background removal and detailed engraving work.
Glendo GRS C-Max Carbide Parallel Flat Gravers bring the proven performance of GRS C-Max carbide to a parallel flat profile, expanding the lineup of precision engraving tools available to professional engravers and stonesetting artisans. Developed in response to strong demand, these gravers share the same high-quality C-Max carbide material used in the GRS C-Max Onglette series.
The Parallel Flat graver features parallel sides with a flat tool bottom, making it well suited for precise flat-bottomed cuts, background removal, and detailed engraving work. Each graver is fitted with a 1/8" (3.175mm) round shank.
Available in eight sizes ranging from #38 (0.6mm) to #45 (2.0mm), these gravers let engravers select the exact cutting width the work requires. Each size is sold as an individual graver.
Features
- Made with GRS C-Max carbide for superior hardness and edge retention
- Parallel flat profile with parallel sides and a flat tool bottom
- Available in eight sizes from #38 (0.6mm) to #45 (2.0mm) wide
- Developed alongside the C-Max Onglette series using the same carbide material
Available Options
| Part # | Size | Width |
|---|---|---|
| 102.712 | #38 | 0.6mm |
| 102.713 | #39 | 0.8mm |
| 102.714 | #40 | 1.0mm |
| 102.715 | #41 | 1.2mm |
| 102.716 | #42 | 1.4mm |
| 102.717 | #43 | 1.6mm |
| 102.718 | #44 | 1.8mm |
| 102.719 | #45 | 2.0mm |
Compatibility
The 1/8" (3.175mm) round shank fits standard GRS-style graver handles and handpieces.
Notes
- Graver handle or handpiece sold separately.
Specifications
- Brand
- Glendo GRS
- Part #
- Varies by size
- Type
- Graver Blanks & Pre-Cut Gravers
- Country of Origin
- United States
- Dimensions
- 3.3 in x 0.44 in x 0.44 in
- Graver Type
- Parallel Flat
- Material
- GRS C-Max Carbide
- Shank Style
- Round
- Shank Diameter
- 1/8" (3.175mm)
- Size Range
- #38 (0.6mm) – #45 (2.0mm)
- Sold As
- Individual graver (one per size)
This product can expose you to cobalt, which is known to cause cancer. www.P65warnings.ca.gov.
