Glardon-Vallorbe Handpiece Files

Miniature Files-Used with the Badeco Reciprocating Polishing and Filing Handpieces for Flexshafts and Micromotors

These new miniature files were developed from a cooperation between Badeco of Geneva Switzerland and UMV of Vallorbe Switzerland. They are made to fit the Badeco Polishing and Filing Handpieces for flexshafts and micromotors Badeco 8LC100 (available with or without duplex spring) and Badeco 4LC100 for Badeco micromotors. Available in either cut 0 coarse or cut 4 fine. Part numbers listed below.

Glardon-Vallorbe handpiece files are 40mm long in total length with cuts that are 26mm in length. Shank diameter is 2.85mm.

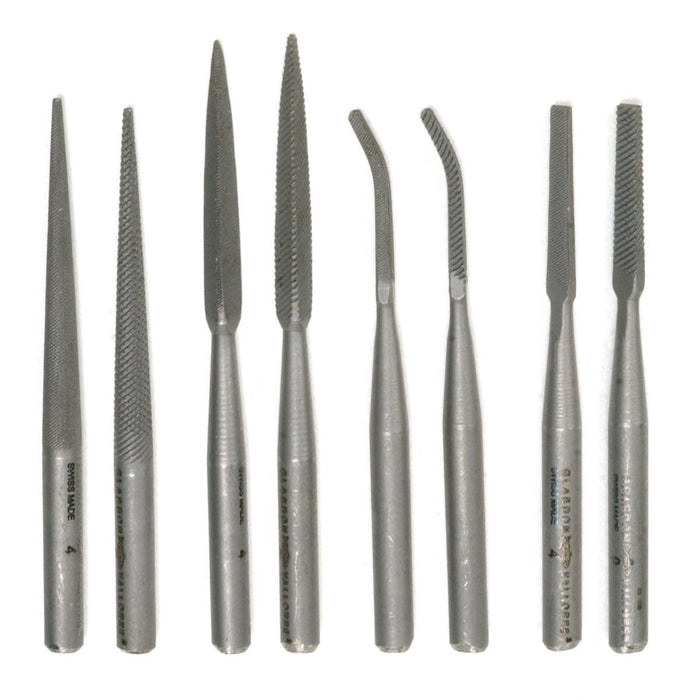

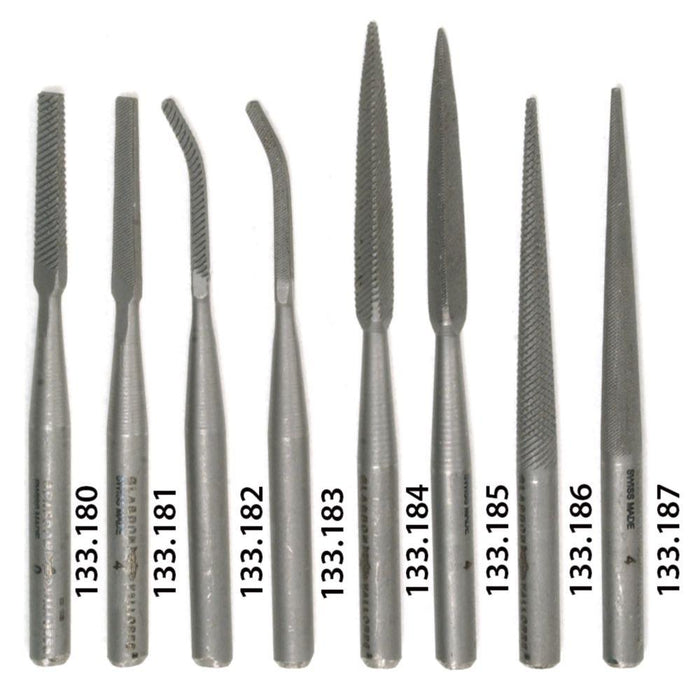

Choose from 8 different files:

• 133.180  Pillar (Flat) Cut 0 Coarse LM0910-0
• 133.181  Pillar (Flat) Cut 4 Fine LM0910-4
• 133.182  Pillar Bent Cut 0 Coarse LM0911-0
• 133.183  Pillar Bent Cut 4 Fine LM0911-4
• 133.184  3-Square Cut 0 Coarse LM0941-0
• 133.185  3-Square Cut 4 Fine LM0941-4
• 133.186  Round Cut 0 Coarse LM0980-0
• 133.187  Round Cut 4 Fine LM0980-4

Use these files with the following handpieces:

• Otto Frei 134.748 with duplex spring Badeco 8LC100 + USA QD Duplex Spring
• Otto Frei 134.748ND without duplex spring Badeco 8LC100 USA QD only
• Otto Frei 134.743 for Badeco micromotors RS2000 Badeco 4LC100
