Foredom K.2253-2 Chisel Carving Kit with Hanger - 230V

230V Export Version. For use in countries where 230V is the standard voltage. Includes North American 3 prong plug. Use an adapter to fit your local 230V outlet.

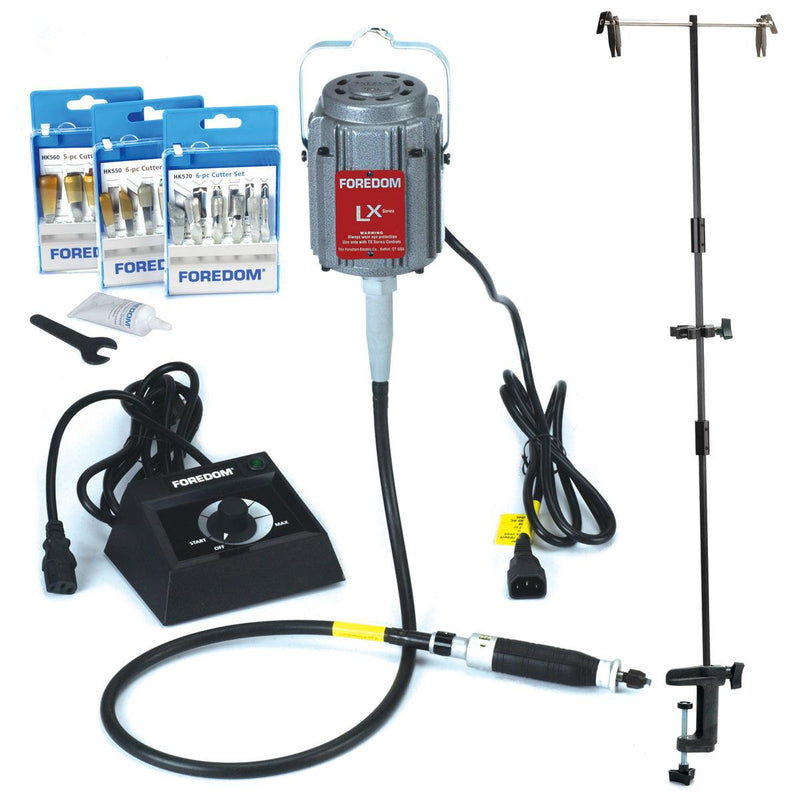

Foredom K.2253-2 Chisel Carving Kit
M.LX-2-230V High Torque/Low Speed 5,000 RPM Motor
C.EMX-2-230V Table Top Speed Control
H.50 Chisel Handpiece
17 Chisels in 3 Sets (AKH550, AKHK560 & AKHK570)

Foredom's new Series LX Chisel Carving Kit comes with the M.LX permanent magnet high torque/low speed Series LX flex shaft motor, the C.EMX table top dial speed control in plastic housing, the H.50 Chisel handpiece and three different chisel sets (17 chisels total). Also included are flex shaft grease and an accessory tray.

Foredom LX Motor

The Foredom Series LX motors are best for jobs that require extra torque at low speed up to 5,000 rpm, like chisel carving and stone setting. The M.LX motors are permanent magnet and work with the same speed controls as the series TX. They do not work with Series SR speed controls. The Foredom Series LX uses a different style plug meant to be used with the TXR, SXR and EMX speed controls. These controls look the same as the Foredom speed controls for the Series SR, however they have special electronics that convert AC current from an electrical outlet to DC current, the type of current required by the LX motor. This chisel kit comes with the Foredom EMX Table top dial control 115V.

Foredom H.50 Chisel Handpiece

Foredom's Chisel Handpiece is designed to give a power assist to carving projects in all types of wood, plastic, plaster and soft carving stone. The H.50 is a reciprocating hammer type handpiece that requires a light pressure to engage the hammering chisel action. It attaches in the same manner to any Foredom or other flex shaft with a standard (USA) key tip shaft. it is shaped like the popular H.44T but has its own unique and rugged textured plastic barrel and tapered aluminum tip. Since the H.50 should not be run at high speeds, the LX series motors, with their built in 5000 rpm limit, are perfect for use with the chisel handpiece. The Chisel handpiece also requires a constant speed, and that is why this kit comes with the EMX table top dial control.

Foredom Chisel Kits

This kit comes with three different Foredom Chisel kits:

• AKH550 6 pc kit contains A-KC503, A-KC504, A-KC505, A-KC506, A-KC509, A-KC510
• AKH560 5 pc kit contains A-KC501, A-KC502, A-KC507, A-KC508, A-KC511
• AKH570 6 pc kit contains A-KC512, A-KC513, A-KC514, A-KC515, A-KC516, A-KC517
