Foredom C.TXR-1 115V & Foredom C.TXR-2 230V Foot Controls In Plastic Housing For TX, TXH, LX & LXH Motor

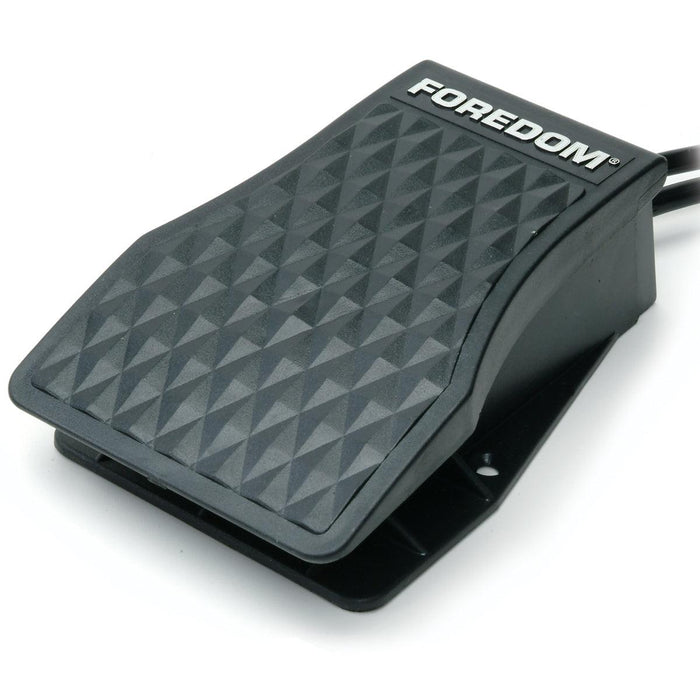

Electronic 115V and 230V foot controls for Foredom TX and LX series motors, converting AC mains power to the DC current these high-torque motors require. Choose C.TXR-1 for 115 V (110–120 V regions) or C.TXR-2 for 230 V (220–240 V regions); both give a smooth, progressive feel under your foot as you dial in just the speed you need.

Features

• Electronic foot-operated speed control designed specifically for TX and LX series permanent magnet motors
• Built-in electronics convert AC line power to DC output matched to compatible motors
• Ergonomic tread and wide profile support precise, repeatable speed adjustments
• Non-slip base helps keep the pedal stable in its position under the bench
• Toe-down response allows quick acceleration and controlled slowdown during delicate work
• Dedicated motor connector ensures a secure, keyed connection to the matching motor cable

Specifications

Available Options

Compatibility

• C.TXR-1 115 V: For 115 V M.TX, M.TXB, M.TXH, M.LX, M.LXB, M.LXH, and M.LXHB motors that use the shielded motor plug.
• C.TXR-2 230 V: For 230 V M.LX, M.LXB, M.LXH, and M.LXBH motors (TX and TXH motors are not made in 230 V).
• Not for use with non–TX/LX series Foredom motors or with motors from other manufacturers.

Notes

• Select C.TXR-1 for 115 V (110–120 V) systems and C.TXR-2 for 230 V (220–240 V) systems; do not connect a 230 V unit to a 100–127 V circuit.
• Match the control to the exact motor model and voltage; using an incorrect control may damage the motor or controller.
• Position the pedal for a relaxed ankle angle and route cables where they will not be stepped on or pinched.
