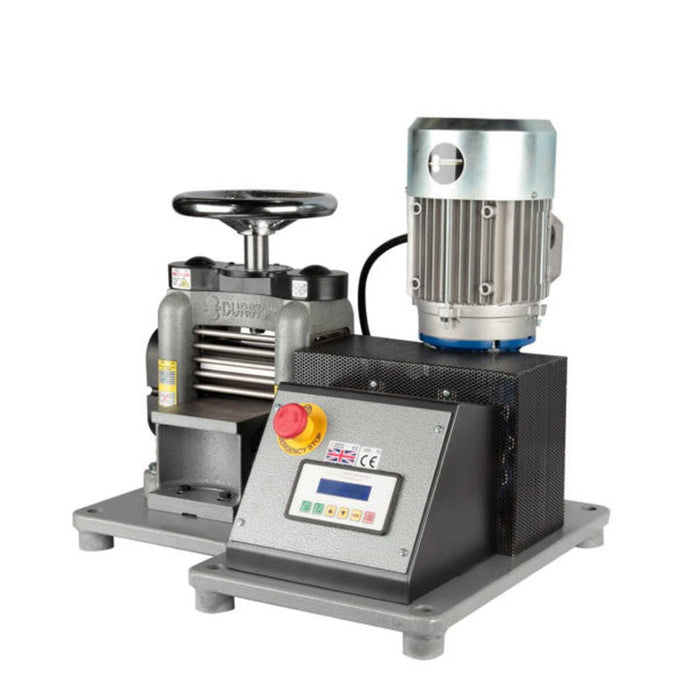

Durston 1088 Power TUI F130 Single Sided 130mm Flat Rolling Mill

Durston has produced the lower cost TUI line of power rolling mills by using a steel base and perforated aluminum gear box cover instead of the cast iron base and cast iron gearbox cover found in the more expensive DRM power mill line. These are the only differences between the TUI and the DRM lines, as all the mills share the same quality motor, gearbox and cast iron rolling mill frames. The TUI series also offers a fully array of safety features including an emergency stop button, safety bars at front and rear of roll access and guards covering the extension rollers at the end of the mill.



This is 130mm wide all flat TUI single sided power rolling mill with side extension rolls-110V

This mill costs about 25% less than the premium Durston DRM Single 130 mm all Flat mill.

Key Features:

• Steel Base
• Aluminum Housed Gearbox
• Metric and Inch Adjustable Flywheels
• Side Extension Rolls with Protective Covers
• Forward and Reverse

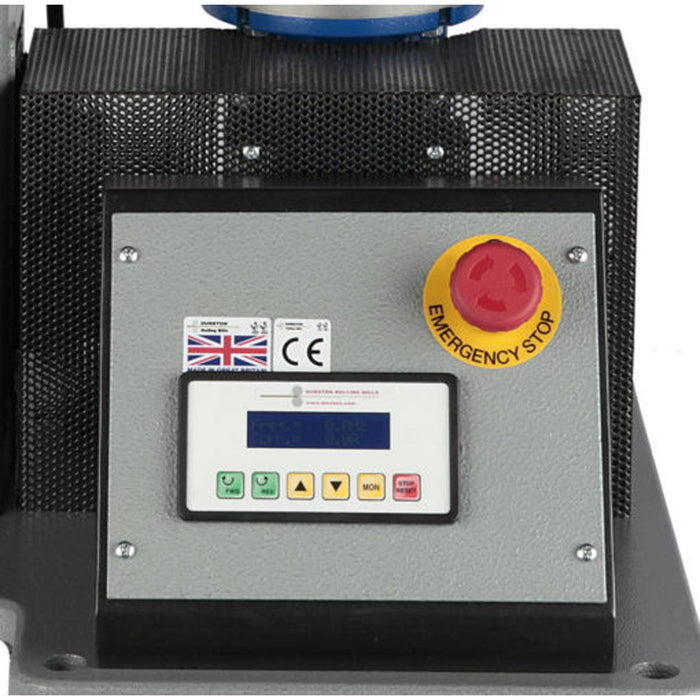

• Emergency Stop Button
• Variable Speed



Aspect	Specification
Motor	1.1Kw (1.5HP) 110V Motor

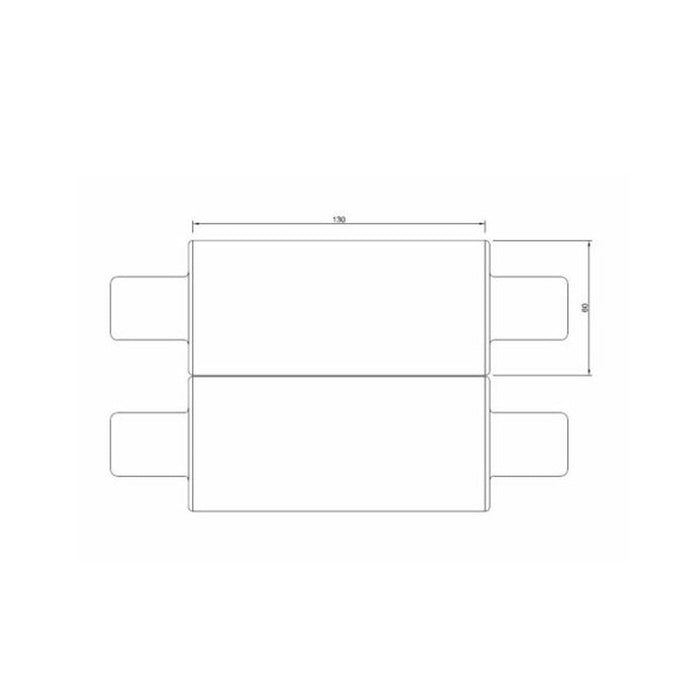

Roll Size	130 mm x 65 mm
Sheet Thickness Capacity	6 mm
Roller Type	Flat
Roller Length	130 mm
Roller Diameter	65 mm
Side Extensions	Four half-rounds: 4, 3, 2 and 1.5 mm
Dimensions	19-3/4" L x 15-3/8" W x 21-1/4" H (500mm x 390mm x 540mm)
Net Weight	243 Lbs. (110kg)
