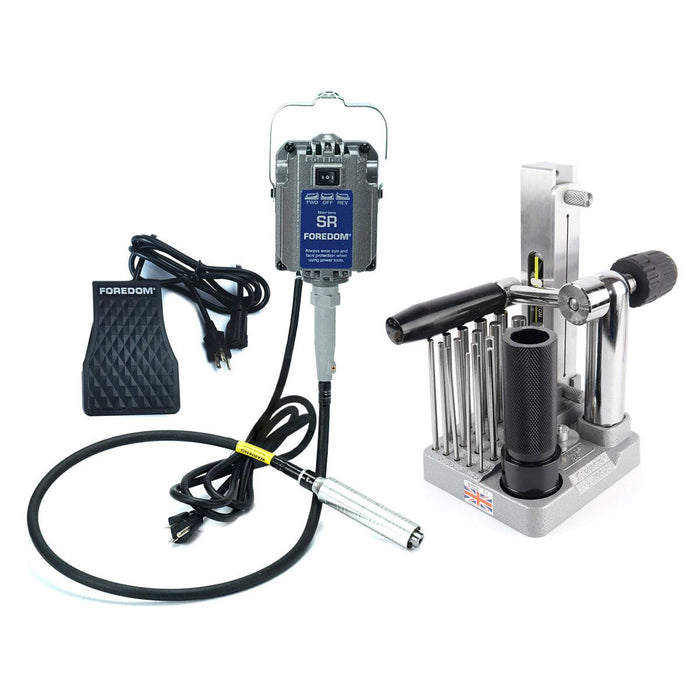

The Durston 1309 Complete Jump Ringer is heavy duty production tool with thousands in use around the world, larger and heavier than other similar systems. The Duston 1309 Complete Jump Ringer features steel construction for all elements except for the aluminum stand. It weighs almost twice as much and is about 25% larger than other similar systems.
The Durston 1309 Complete Jump Ringer requires a flex shaft with a #30 style handpiece, so we put this kit together with a Premium Foredom Flex Shaft with extra savings, in case you don't already own a flex shaft.
Durston 1309 The Complete Jump Ringer 143.209:
The Durston 1309 Complete Jump Ringer is a jump ring making machine that is used with a Foredom No. 30 style handpiece and a flex shaft machine. With it you can mass produce jump rings from soft* non-ferrous jewelry wire like gold, copper and silver. The jump rings can be made with wire as thick as 13 gauge (1.85 mm). The inside diameter of the jump rings can be as small as 2 mm and as large as 12 mm. The outside diameter of your rings will vary depending on the wire diameter you use. The most popular sized wire for making jump rings used in the jewelry industry is anywhere from 0.8 mm to 1.0 mm.
The 1309 Complete Jump Ringer from Durston has many improvements over the original Durston Ringer. It now includes a coil holder which is part of the main base for greater stability. It also has a safety coil winder which can be moved and positioned anywhere on your bench. The increased mandrel length (4-3/4") and coil holder length means you can produce more jump rings at one go. The high stem gives more room for your hands and is movable in a complete 360 degree circle.
Includes: 21 Mandrels
Mandrels Range from the smallest at 2 mm up to the largest at 12 mm in 1/2 mm sizes. The smallest 4 mandrels, sizes 2 mm, 2.5 mm, 3 mm and 4 mm do are not drilled with holes. All other mandrels are drilled with holes.
- 2-Sided Coil Holder x 1
- 1-1/4" High Speed Steel Saw Blade x 1
- Saw Blade Mandrel x 1
- Handpiece Holder x 1
- Coil Winder with Key-less Chuck x 1
- Hex keys x 3
*Not for use with platinum, titanium, steel or niobium wire.
Foredom Flex Shaft Kit 134.186:
The Foredom basic flex shaft kit contains the 1/6HP reversible Foredom SR motor 110V or 230V, the FCT foot operated speed control 110V or 230V, and the number 30 Foredom handpiece with geared 3-jaw #0 chuck, a chuck key with plastic handle, a tube of flex shaft grease.
The new Foredom SR series 1/6HP flex shaft motor is reversible, so you can turn your tools forward or in reverse. Maximum RPM is 18,000. The Foredom SR series has a 2 year warranty.
