Durston 1040 Agile F165mm Flat Rolling Mil

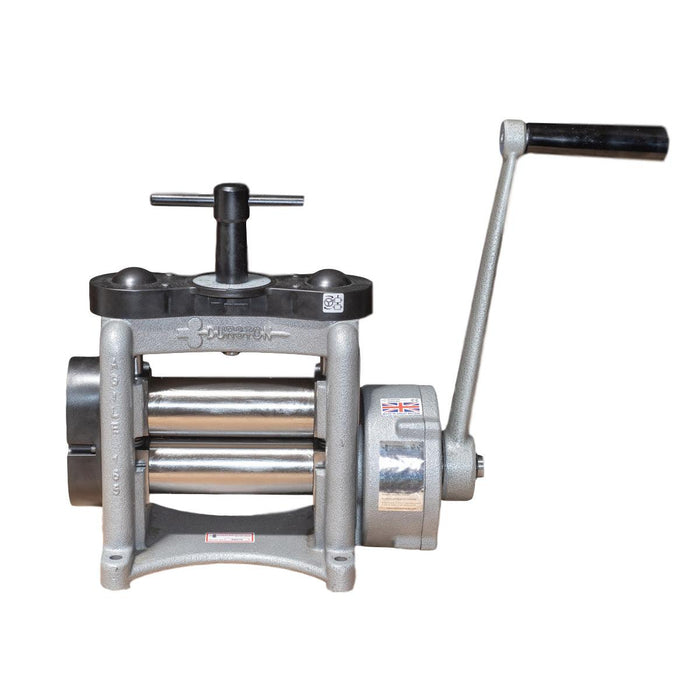

The new Durston Agile F165 Flat Rolling Mill

Lighter Frame
T Bar Top
All Flat
With Reduction Gear

Durston has upped its game in the rolling mill size wars, with this new 165 mm wide all flat rolling mill. The Agile line uses a traditional T-bar for roll opening adjustment that replaces the heavy cast hand wheel for added savings and also does not include the outside half round "extension" rollers found on some of the DRM line of mills.

The rolls are induction hardened to 64 Hrc to a depth of 6 mm and just like the DRM line the bearings are self lubricating and maintenance free.

The heavy duty five to one gearbox is unrivaled in the industry and makes turning the rolls so much easier. Behind the cover you will find two specially formed gears to make rolling even smoother. Safety features include a protective guard around the top gears.

Aspect	Specification
Roll Size	165 mm x 60 mm
Sheet Thickness Capacity	6 mm
Roller Type	Flat
Roller Length	165 mm
Roller Diameter	60 mm
Wire Grooves	11 sizes ranging from 6 mm to 1 mm
Half-Round Sizes	6, 5, 4, 3 and 2 mm
Gear Ratio	5-to-1 gearbox
Maximum Wire Capacity	6 mm
Dimensions	17-1/4"L x 8-3/4"W x 14-1/4"H (435mm x 220mm x 365mm)
Net Weight	87 Lbs (39.7kg)

With the weight and material savings the new Durston Agile is very competitively priced.
