Will cut up to 110mm (4-3/8") wide by 2mm (12 gauge) thick non-ferrous metal and 1 mm (18 gauge) mild steel. Precision ground, hardened and tempered blade.

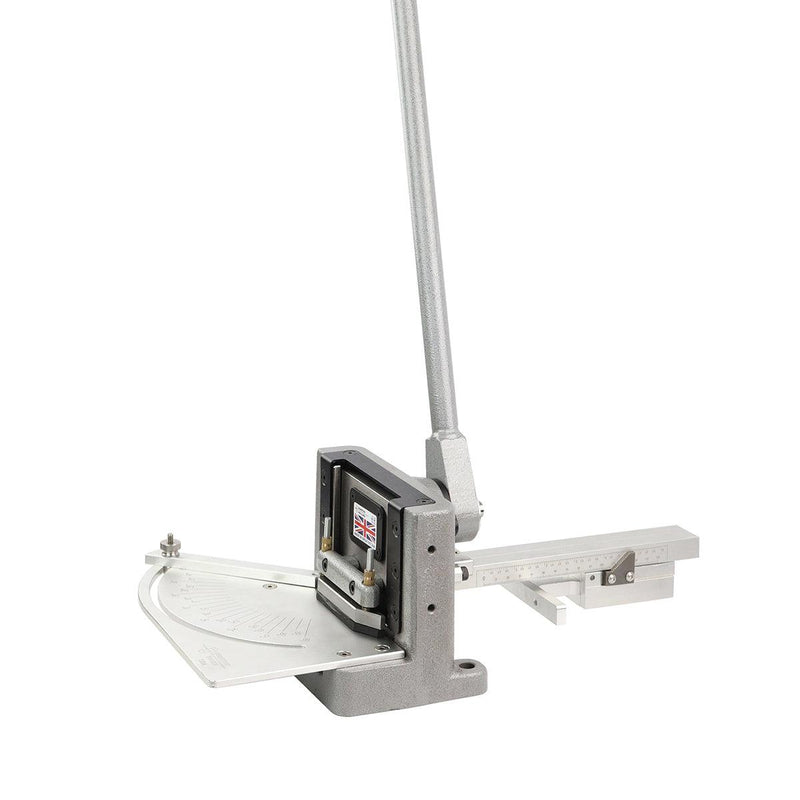

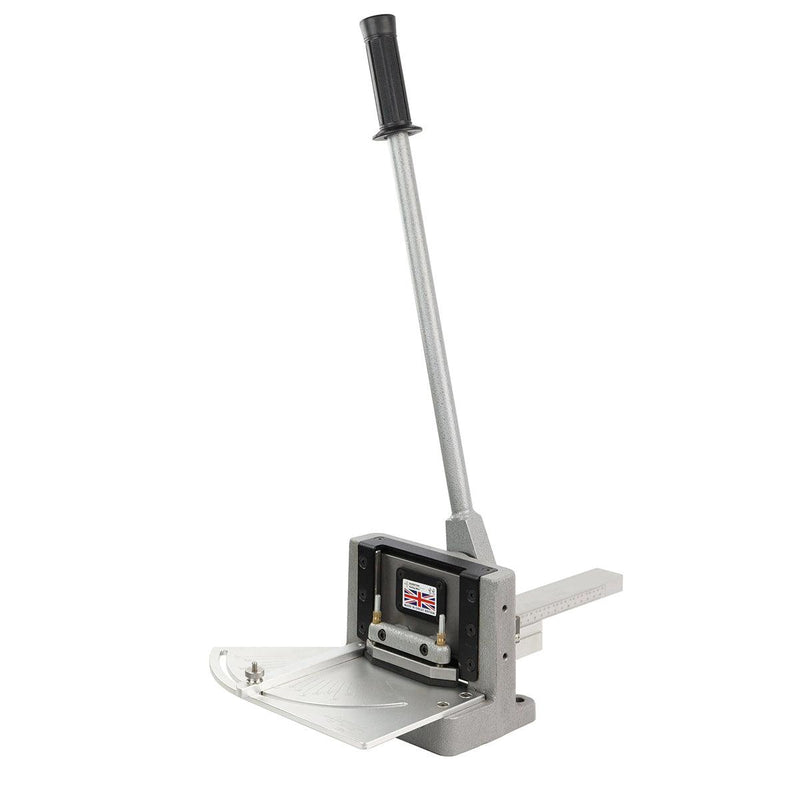

This new version of Durston 4" guillotine shear, first of its kind patent pending table, new improved 6" backstop and square drive system makes the Guillotine Shear stand out from the rest.
The smallest of Durstons guillotine cutters. This model is ideal for cutting straight edges and creating small findings in sheet metal up to 4-3/8" (110 mm) wide. The adjustable built in mitre gauge and ruler allow you to make precise straight and angled cuts. It can cut angles up to 60 degrees in 5 degree increments. The stainless steel table supports the metal as it is fed into the cutting area, helping to ensure even and clean cuts every time.
The shear is operated with a hand bar that controls a precision ground, hardened and tempered cutting blade. The blade has 4 cutting edges, so it can be rotated if ever damaged or worn to give an extremely long service life. The blades will cut non-ferrous metals up to 2 mm thick as well as mild steel up to 1 mm thick.
The shear can be mounted to any service. It is strong and durable, as you would expect from a Durston product produced in the UK.
Click here for Assembly Instructions
Net Weight 18-1/4 Lbs ( 8.3 Kg)
Shipping Weight: 22-1/8 Lbs (10 Kg)
Length: 8-5/8" (220 mm)
Width: 6-3/4" (170 mm)
Height: 5-1/8" (130 mm)
Country of Origin: United Kingdom
