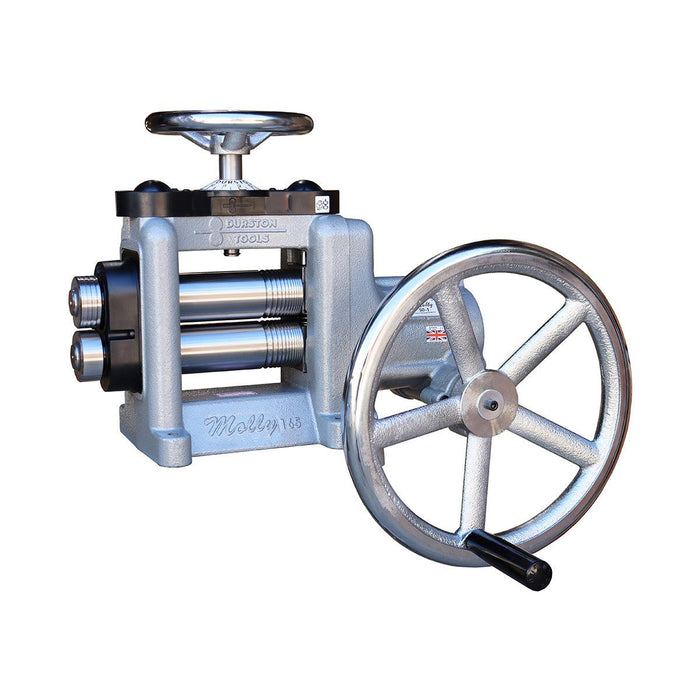

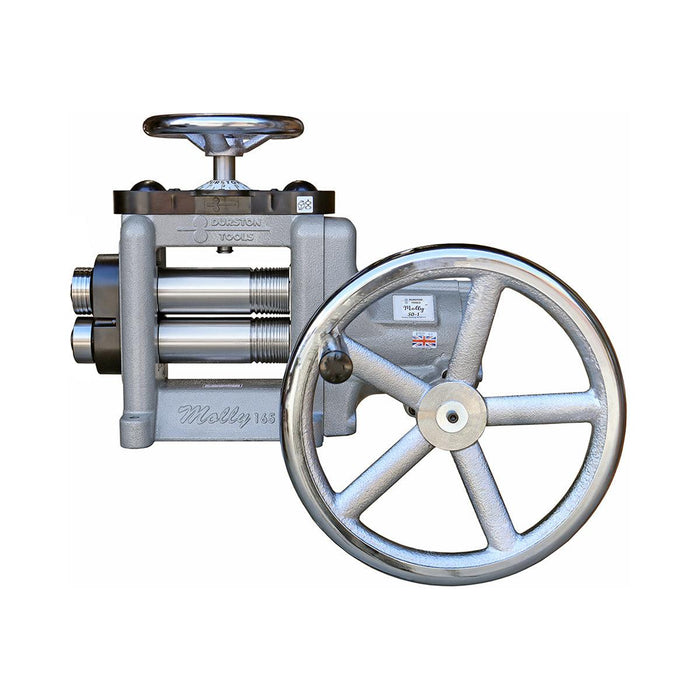

The Molly C165 Rolling Mill has all the same amazing features as the Olivia Rolling Mill but has the increased flexibility of a wider flat rolling area, now you can have the benefits of the 50:1 Gearbox with a much larger rolling area.
The unique patent pending 50-1 Gearbox, this revolutionary design makes rolling so much easier. The new easy guide gearbox allows for an even wider range of people to operate a rolling mill with ease. The 50-1 gearbox making it that much easier to roll out material. It will take 50 turns of the handwheel to turn the rolls once. The gearbox and handwheel has been designed to work together to make turning so much easier. The especially designed Patent Pending gearbox along with the inertia of the handwheel means you can turn the handwheel up to 10 times as quick as a standard rolling mill with 4-1 reduction.
The Molly C165 is a Combination Rolling Mill designed for flat metals, wire and half-round wire (using the side extension). Durston Rolling Mills are proven to be solid, reliable workhorses in many jewelers workshops and factories offering years of service. The Olivia C165 is no exception. The new Molly 50:1 Rolling Mill has a larger footprint and will not fit the Durston Rolling Mill Stand.
Features a solid single cast body, induction hardened rolls and our classic highly calibrated adjustment wheel ensuring a lifetime of rolling with professional results.
Features:
Operated with ease standing or sitting using the front turning wheel
50-1 reduction gearbox
Side extension with 4 half-round grooves (4 to 1.5mm)
11 Square wire rolling grooves (Main Roll)
Flat rolling area 110mm (Main Roll)
Roll Diameter: 60mm
Roll Width: 165mm
Aspect
Specification
Roll Size
130mm x 60mm
Sheet Thickness Capacity
6mm
Roller Type
Combination
Roller Length
130mm
Roller Diameter
60mm
Gear Ratio
50-to-1 gearbox Patent Pending
Side Extensions
Four half-rounds: 4, 3, 2 and 1.5 mm
Dimensions
20-3/4" L x 8-3/4" W x 21-1/4" H (530mm x 220mm x 540mm)
