Arbe introduces an affordable personal benchtop fume system for capturing and eliminating harmful fumes and particles right at the source. Extremely compact, taking up less than 8" x 8" footprint, and highly efficient with 99.97% down to 3 micron capabilities, this fume system can be set up right next to your where your solder-either on your workbench your soldering station.
Product Details:

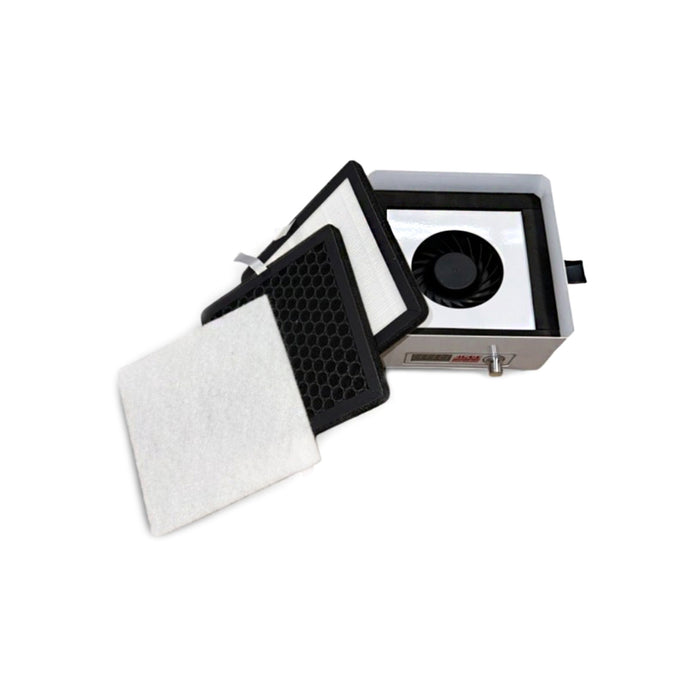

The Arbe SFE-24 uses a special 3-part replaceable filter that combines a pre-filter, a carbon filter and a HEPA rated filter for a filtration efficiency of 99.97% down to 3 microns. Unit is mounted on 4 hard rubber feet and exhaust from vents in the bottom.
Operational Details:

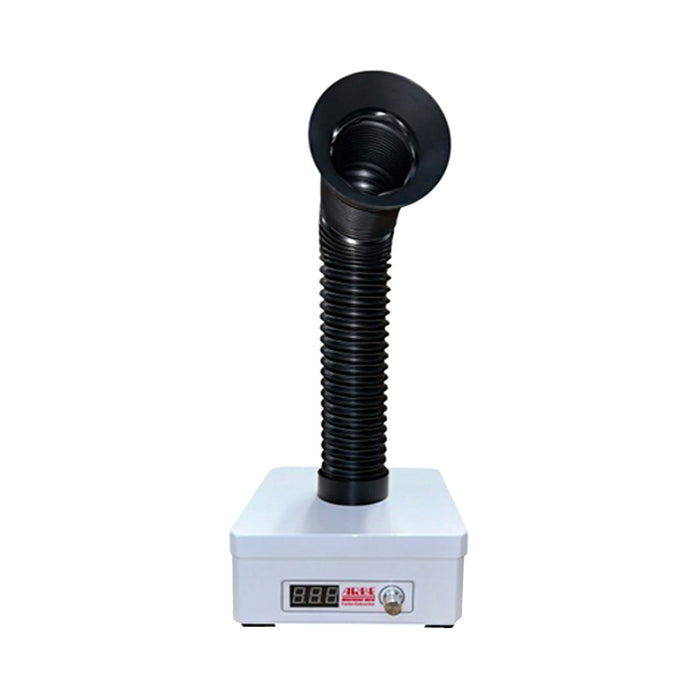

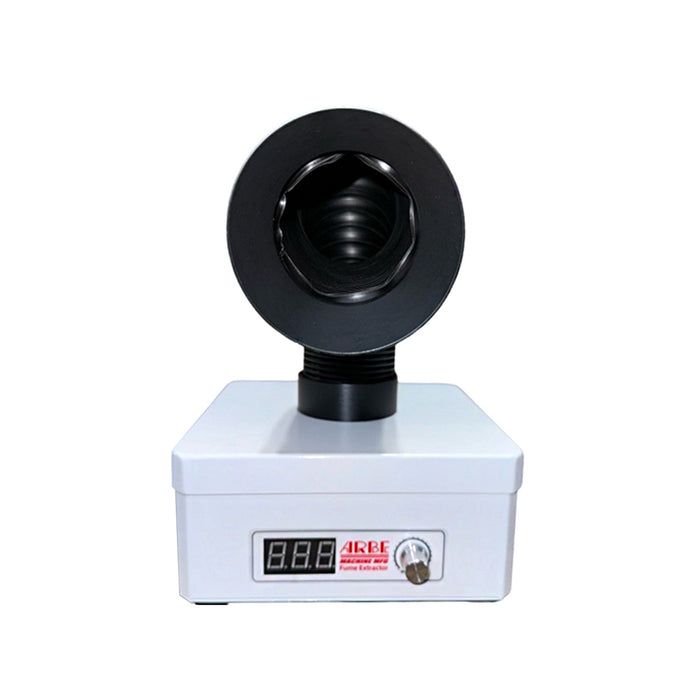

The on/off switch is located on the back of the machine near the plug. The power selector is by a dial located on the front right hand side of the machine. The LED power indicator reads out from 000 to 100 indicating the percentage of power being sent to the variable speed suction motor.
For longest filter life it is recommended to use the minimum amount of suction power to produce the desired results, which is to pull the fumes away from the work area.
Filters should be changed at 3 to 12 month intervals depending on the amount of use the unit receives. In production use you would change the filters more often.
Noise levels
- 25% power 40 decibels
- 50% power 52 decibels
- 75% power 60 decibels
- 100% power 70 decibels
High-Efficiency Filtration: The Arbe Fume Extractor is equipped with advanced filtration technology to capture and eliminate harmful particles and fumes, ensuring cleaner air and a healthier workspace.
Compact Design: Its small footprint makes it perfect for any workbench.

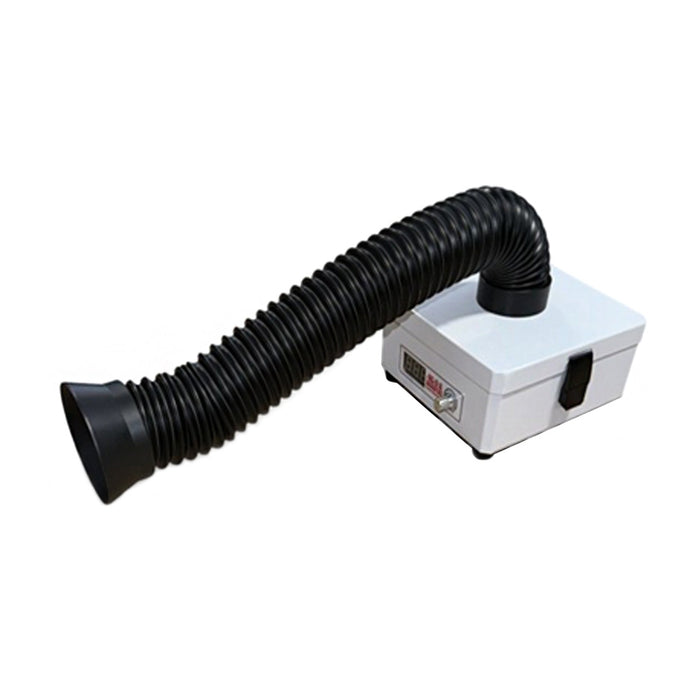

Flexible Hose: The hard plastic flexible hose allows for versatile positioning, ensuring maximum suction directly at source of fumes. Hose expands to a maximum length of 18" allowing for a 12" reach from center of the unit.
Heavy Duty Construction: The fume extractor is designed for long-lasting performance and reliability in demanding work environments.
Applications:
Ideal for use in jewelry making and soldering. The Arbe Extractor uses a three stage filter pack that ensures a safe working environment by efficiently removing toxic fumes. Unit has a first stage high efficiency pre-filter, a second stage activated carbon fume absorbing filter and a third stage HEPA filter.
Technical Specifications:
Power Supply: 110V ONLY (not available in 220V)
Hose Length: Extendable to 18"
Filtration Efficiency: 99.97% at 0.3 microns
Dimensions: 3.5" (H) x 7-1/4" (W) x 7-1/4" (D) (88mm x 185mm x 185mm)
