2-Way Pearl Drilling Jig

New Lower Price-Now Made of Nylon

This handy pearl and bead drilling jig can be adjusted to hold pearls and beads up to 10mm (larger beads or pearls up to 15mm in diameter can be held but not centered). Both ends of the brass holders have center holes for inserting a pearl drill or a high speed steel twist drill bit up to 1.0mm in diameter (the 21mm long brass holders can be modified to use a thicker drill bit). Certain short style drill bits can't be used, as your drill must be longer than the 21mm brass holder. By being able to drill from both sides, you can get professional results without having an "exit wound" that happens when you drill all the way through from one side.

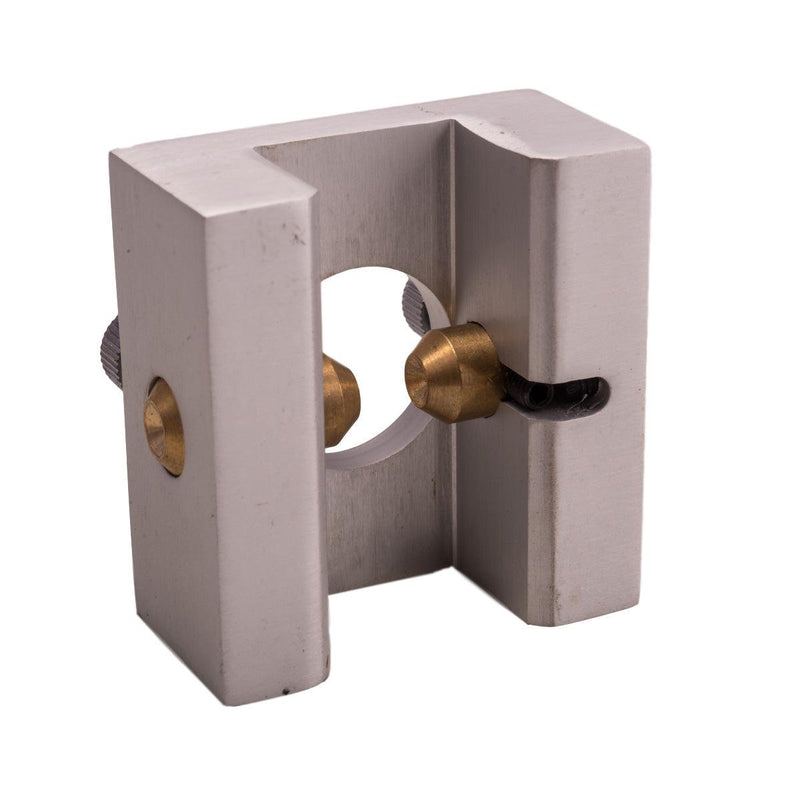

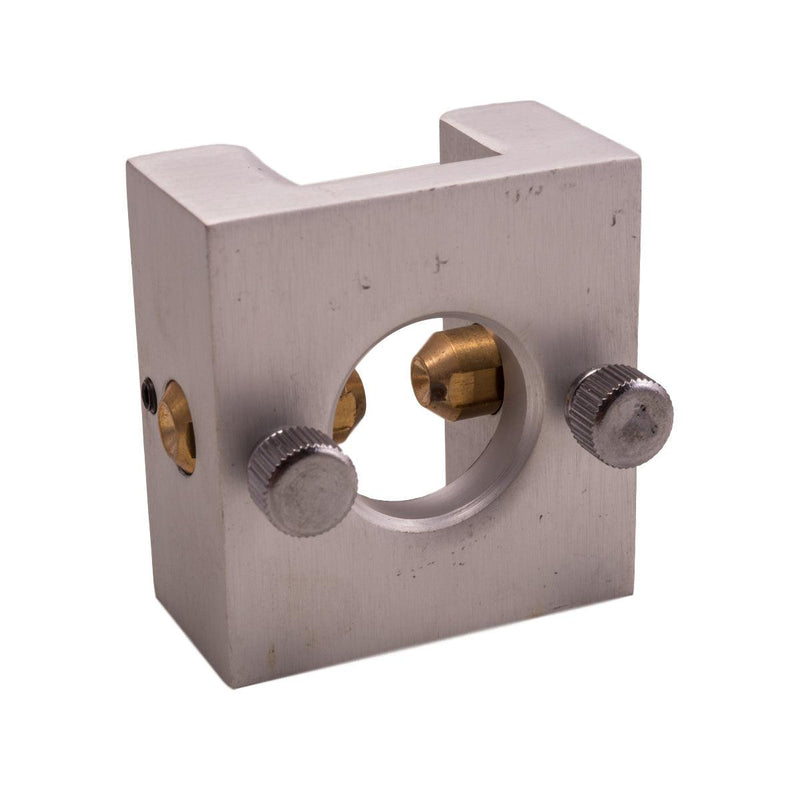

This hand held pearl drilling jig is 50mm (2") square by 25mm (1") thick. One brass holder uses an adjustable mini-screw device for making precise micro-adjustments for centering the item being drilled. A hex key is included for adjusting the mini-screws. Large adjustments are made with the chrome knurled screws on either side of the jig.
